TOTO Hayon CW254PJT1WS Wall Faced Toilet with S7 TCF4732AT WASHLET (D-Shape) with Inwall Cistern & Flush Plate

TOTO Hayon Wall Faced Toilet with S7 TCF4732AT WASHLET (D-Shape) with Inwall Cistern & Flush Plate

Package: Toilet Suite & Washlet

CW254PJT1WS/TCF4732AT/THX918/SHXCP407/Q731-0101-A1/MB175M#SS

The Hayon Wall Faced Toilet with WASHLET S7 (D-Shape)+ In-wall Cistern Flush Panel offers a range of innovative features:

• Tornado Flush
• Air-In Wonderwave
• CEFIONTECT

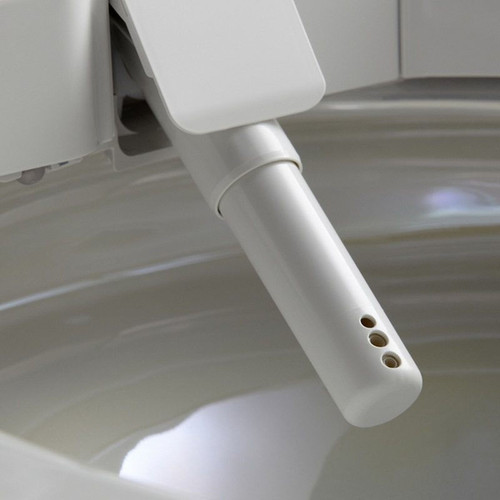

• EWATER+ For Wand
• Premist
• Rimless
• Water Saving
• Warm Air Drying
• Deodorizer

Specifications

TOILETS

• Flush system:: TORNADO FLUSH
• Water Use:: 4.5L / 3L
• Rough-in:: 180 mm
• Bowl Shape:: D-Shape
• Water Pressure:: 0.05MPa~0.75MPa
• Size:: 380Wx595Dx400H mm

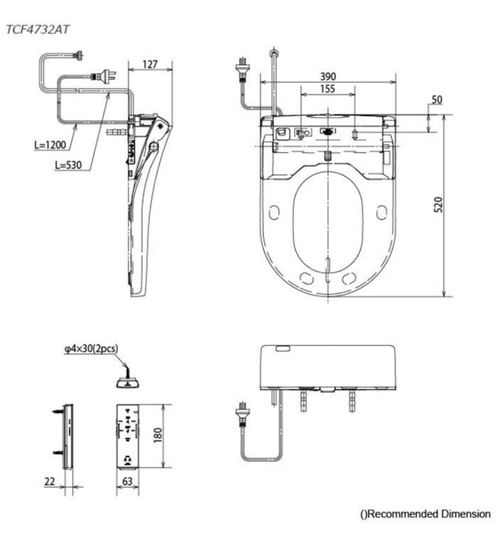

Washlet

Bowl Shape: D-Shape
Water Pressure: 0.05Mpa~0.75Mpa
Power Rating: 220~240V , 50/60Hz ,
1275~1400W
Length of Power Cord:1.2 m
Material: Plastic
Size: 390W x 520D x 127H mm

Parts Description

CW254PJT1WSD-Shape Wall Faced Closet Bowl w/ Fixing Bracket

TCF4732AT WASHLET D-shape

THX918 Socket (Only for S-Trap)

SHXCP407 Universal Plate  （Extra $50)

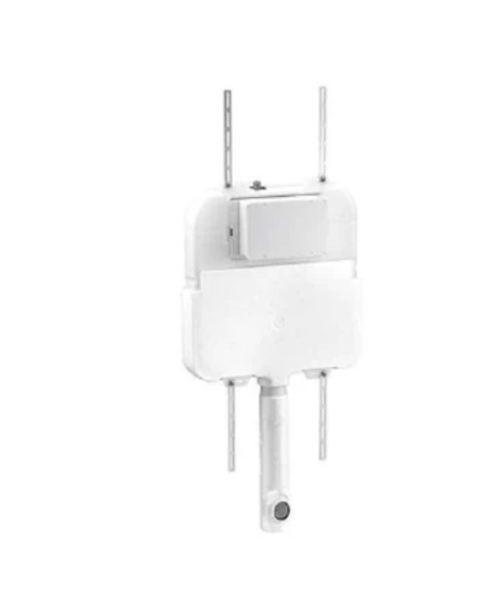

Q731-0101-A1  Axent Consealed Cistern without Frame

MB175M#SS  Toto Flush Panel - Stainless Steel
